Futaba T6K-V2 radio set

T6K-V2 radio set

Updated Version 2 offers 8 channels of control!
To get the most radio for your money, check out the new 6K — an easy-to-program flight system with versatile functions that include telemetry, S.Bus/S.Bus2 compatibility and 30 model memory. With Version 2 updates, it's now a better value than ever. The NEW 6K is an 8-channel system with additional telemetry functions, expanded multicopter flight modes and much more.


New in the T6K Version 2:

• Two additional channels
• Channels 7/8 are used through the R3006SB receiver's S.BUS/S.BUS2 ports
• Allow for expansions or adding accessories
• Can be assigned to any of the four switches or VR dial
• Are included in Sub Trims, End Points, Reverse, Failsafe, Servo Monitor and Trainer
• Expanded Flight Modes (Fly Mod) in multicopter programming
• Priority — toggle through five different values assigned to flight modes on an assigned channel
• Matrix — up to nine combinations using two, 3-position switches for controlling gimbals
• Vibration alerts with timer functions and Throttle Integrate

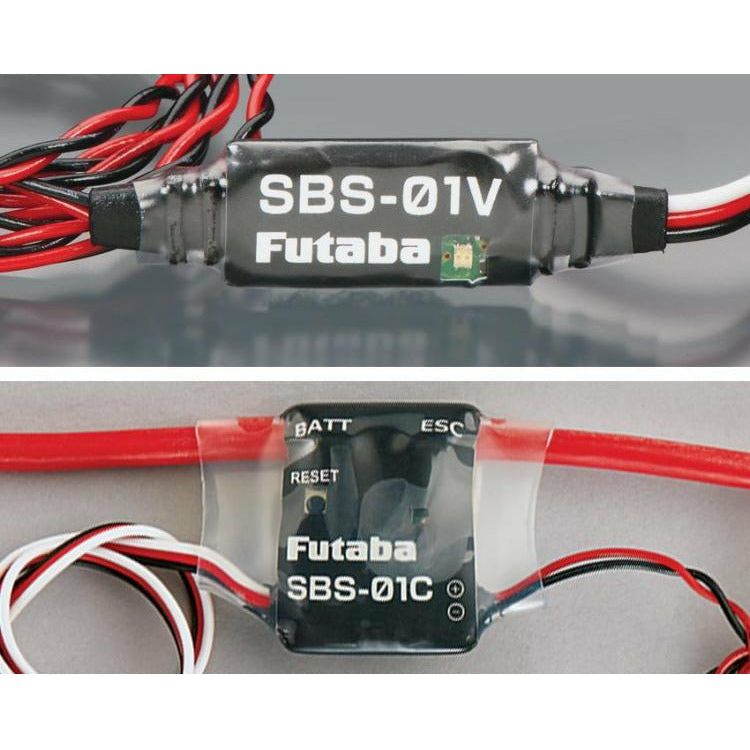

• SBS-01C current sensor and SBS-01V voltage sensor compatible

The included R3006SB receiver has six standard PWM ports plus S.Bus and S.Bus2 ports. You can use S.Bus as the main link to your servos or a combination of the ports. The S.Bus2 port allows bi-directional communication with T-FHSS Futaba air transmitters and the use of a wide array of telemetry sensors.

System Features:

• Airplane, Helicopter, Glider and Multicopter programming
• S-FHSS/T-FHSS selectable
• Telemetry system (T-FHSS) with data speech (via earphones) function for monitoring receiver battery voltage, external voltage, temperature, RPM, altitude and variometer, current, capacity and voltage

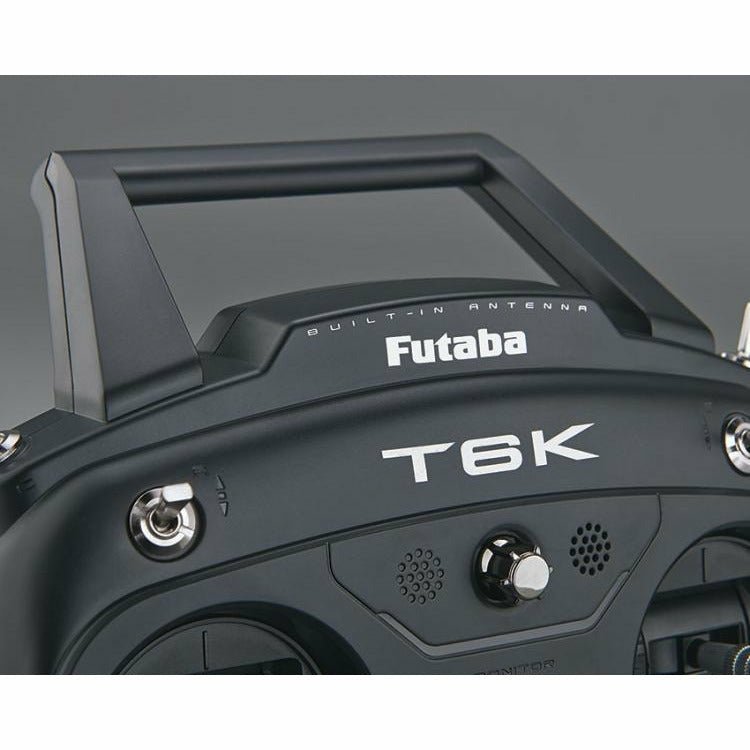

• Built-in antenna (Full Range)
• S.Bus/S.Bus2 servo setting functions programmable through the transmitter
• Preset vibration alarms
• 30 model memory
• 8-character model/user naming
• Programmable mixes (3-normal, 1-curve) for airplanes, helicopters, gliders and multi-rotors
• Digital trims with variable step settings
• Adjustable stick length and tension
• Changeable switch/VR position and AUX channel function
• Throttle position warning
• Backlit 128x64 DOT LCD screen with adjustable display contrast
• Software updateable through the CIU-2 or CIU-3 interface units
• Screen Lock
• Earphone/S.Bus/Trainer jacks

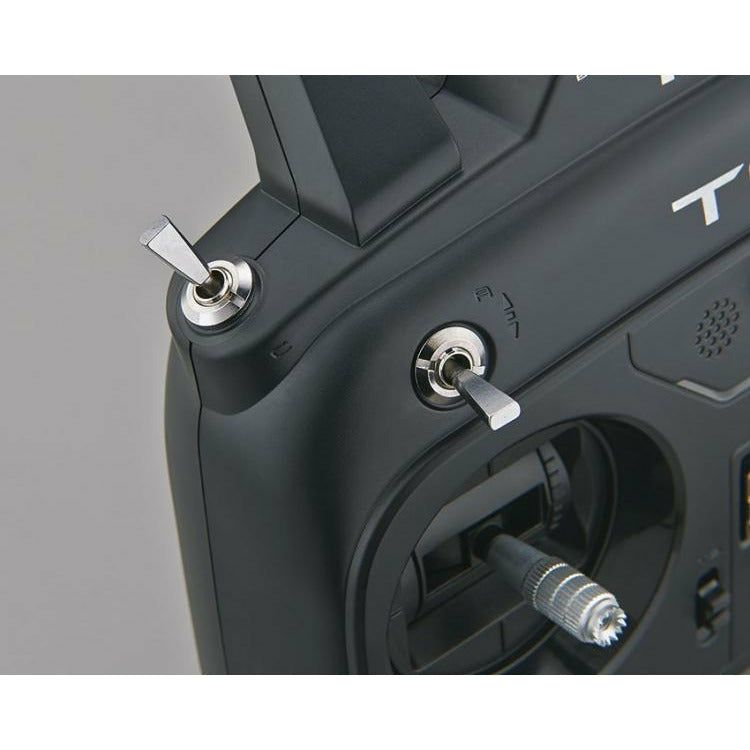

• Assignable switches (three 3-position, one 2-position)
• Range Check

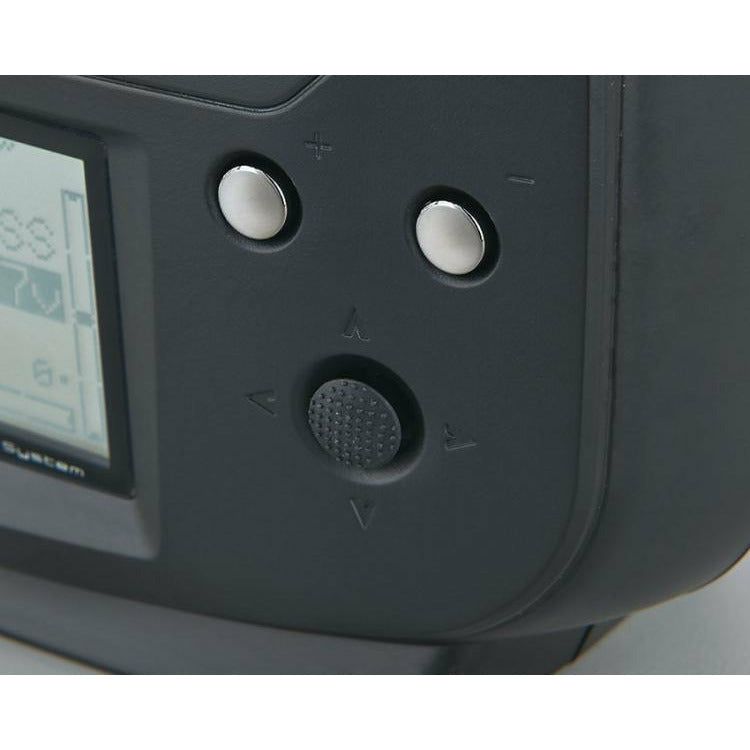

• Program navigation bay with jog dial, +/- pads and end pad
• Data reset
• Model copy
• Selectable model type
• Fail Safe
• End Points
• Trim/Trim Resets/Trim Steps
• Sub Trim
• Servo Reversing
• Parameter functions
• Servo monitor/Test
• Wireless model data transfer (to other T6K transmitters)
• Timer-System and Model (Up/Down/Down-Stop/THR Integrate) w/Vibration Alert
• Trainer system
• Power Saver

Airplane Functions:

• Wing Type (5-wing, 2-tail)
• Throttle Cut
• Dual Rate/Expo
• Throttle Curve
• Idle down
• Gyro
• Aileron differential
• V-Tail
• Camber
• Air Brake
• Elevator-to-Flap mixing
• Flap-to-Elevator mixing
• Elevon mixing

Glider Functions:

• Wing Type (5-Wing, 2-Tail)
• Condition select
• Dual Rate/Expo
• Motor switch
• Gyro
• Aileron Differential
• V-tail
• Butterfly mixing
• Trim mixing
• Elevator-to-Camber mixing
• Camber mixing
• Aileron-to-Camber mixing

Helicopter Functions:

• Swash type (6)
• Condition Select
• Throttle Cut
• Dual Rate/Expo
• Trim Offset
• Delay
• Gyro mixing
• Swash AFR
• Swash mixing
• Throttle Curve (5-point)
• Pitch Curve (5-point)
• Pitch-to-Rudder mixing
• Throttle Hold
• Hovering throttle
• Hovering pitch

Multicopter Functions:

• Flight Mode
• Center alarm
• Dual Rate/Expo
• Throttle Curve
• Throttle Delay
• Gyro

Six Languages:

• English
• German
• French
• Spanish
• Italian
• Dutch

Optional Telemetry Sensors when using R3006SB receiver:

• Temperature sensor (loop): SBS-01T
• Temperature sensor (EP models): SBS-01TE
• Altitude sensor: SBS-01A
• RPM sensor magnet type: SBS-01RM
• RPM sensor optical type: SBS-01RO
• RPM sensor brushless motor type: SBS-01RB
• (Additionally the SBS-01V telemetry sensor for external voltage can be used together with the optional R3008SB receiver)

Transmitter Specifications:

• Type: 2-stick, T-FHSS/S-FHSS selectable
• Channels: 8 (channels 7/8 are used through the receiver S.BUS/S.BUS2 port)
• Power Supply: 4 "AA" cells; optional 6V NiMH or 6.6V LiFe batteries

Receivers that can be used:

• T-FHSS Air: R3006SB & R3008SB (Note, the R304SB, R304SB-E T-FHSS surface system receivers does not work with the T6K or T6K-V2)
• S-FHSS: R2008SB, R2006GS & R2106GF (No telemetry functions)

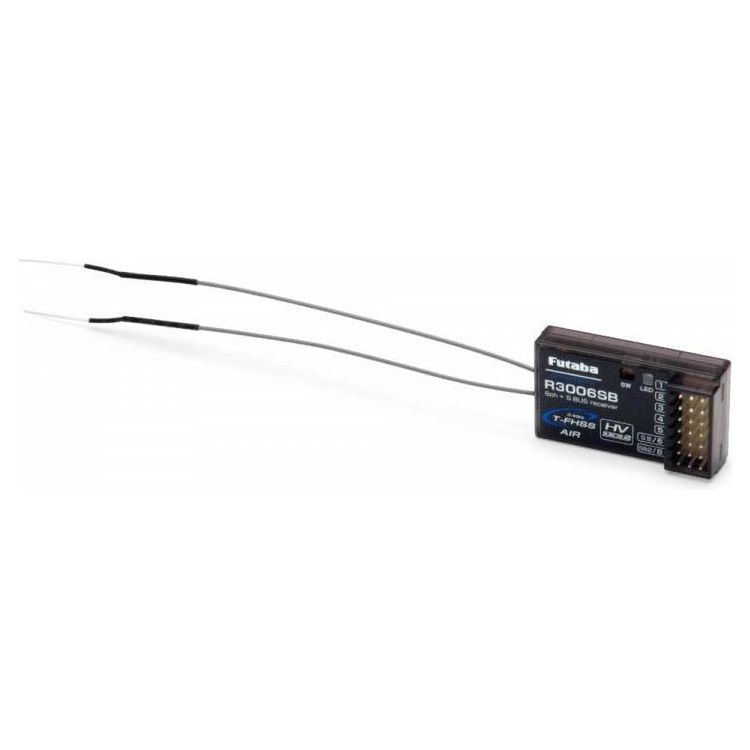

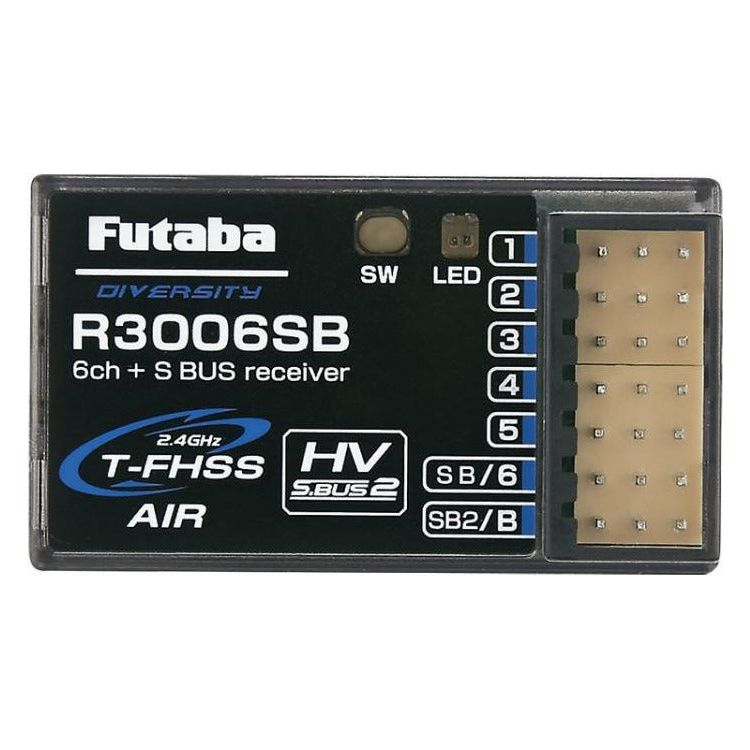

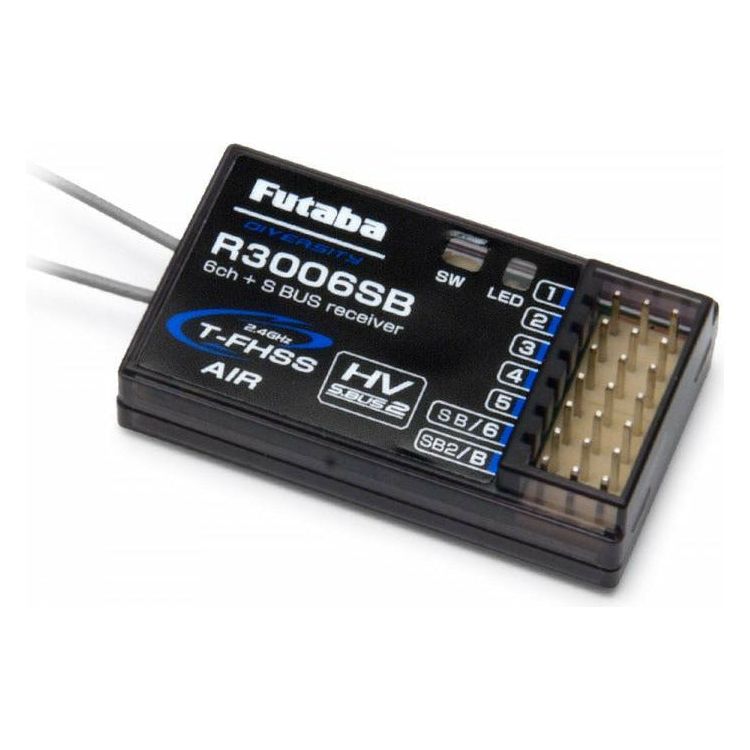

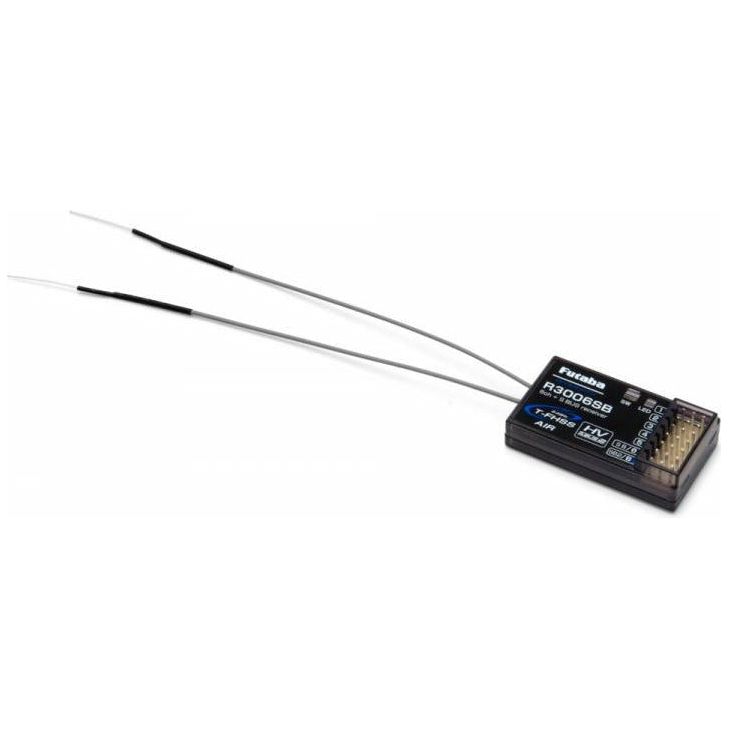

R3006SB 2.4GHz T-FHSS S.Bus Receiver for T6K
The included R3006SB T-FHSS Air Receiver is S.BUS compatible and features Dual-Antenna Diversity - it also comes equipped to handle high voltage applications.

R3006SB Receiver Specifications:

• T-FHSS Air 2.4G system
• Dual antenna diversity
• S.BUS, S.BUS2 system
• Power Requirement: 4.8 - 7.4V Batteries
• Battery F/S Voltage: It's set-up with the transmitter
• Size: 43.1 x 25 x 8.8 mm
• Weight: 8.5 g
