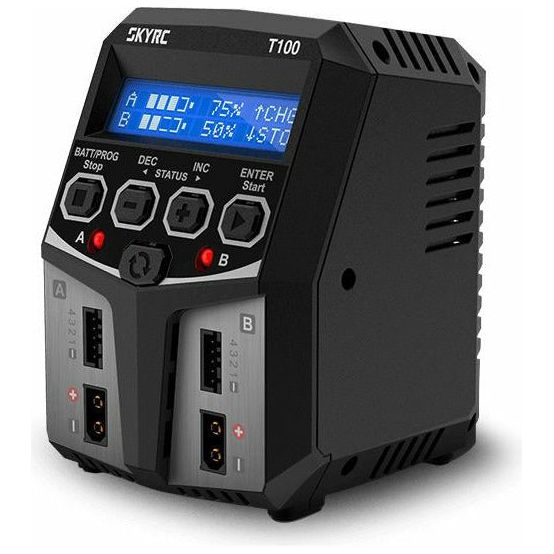

SkyRC T100 Twin-Channel (2x50W) 240VAC Charger

SkyRC T100 Twin-Channel (2x50W) 240VAC Charger

Multi-purpose for Most Chemistries With Generic XT60

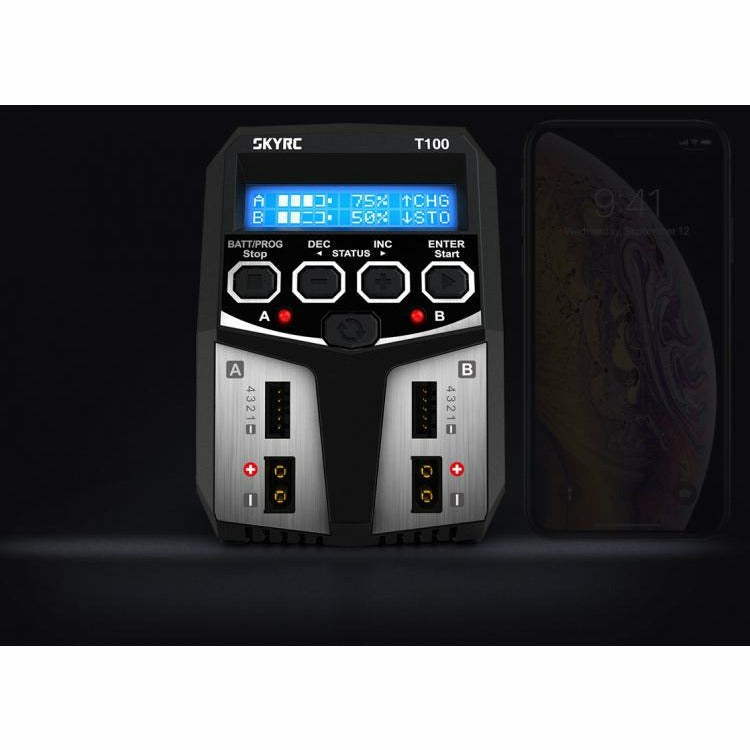

SkyRC T100 is a twin-channel charger with two independent circuits which can charge batteries of varying chemistries (LiPo / LiFe / Lilon / LiHV / NiMH / NiCd / Pb) simultaneously. Its sleek design allows easy front-loading plug-in convenience of balancing and XT60 ports. It is not only compact in size but also powerful in output with maximum 100W charging power and 5A charging current which makes charging more sufficient. With the new AGM and cold charge modes, the user is free to charge their PB and AGM batteries in cold days.

Twin-channel Charger
SkyRC T100 allows you to plug 2 batteries into one charger simultaneously, and it will intelligently and automatically initiate the charging of 2 batteries at once to their maximum capacity. To top it all, the batteries being charged do not even need to have the same configuration. You can connect different chemistry (NiMH / NiCd / LiPo / LiFe / Lilon / LiHV / Pb) batteries into any of the charging ports.

T100 Specifications:

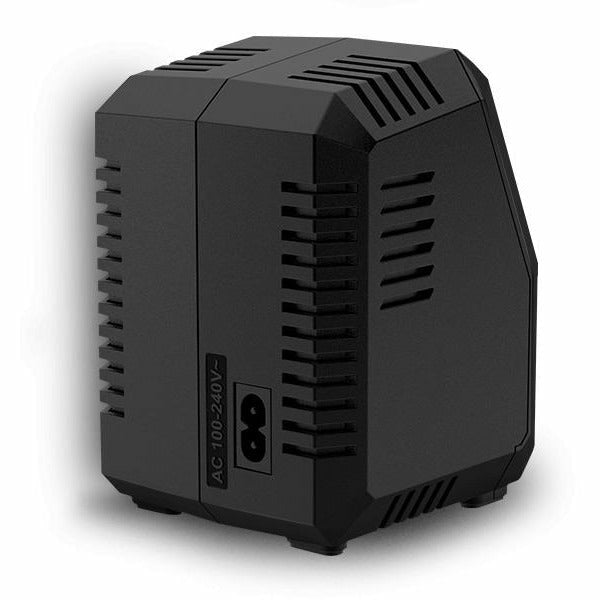

  • Input Voltage: 100-240VAC (50/60Hz)
  • Power: 2x50W
  • Output Charge Connector: XT60
  • Output Balance Connector: XH
  • Weight: 500g
  • Size: L90 x W100 x H127 mm
  • Battery Voltage Detection: Yes
  • Anti-Reverese Protection: Yes
  • Short Circuit Protection: Yes
  • Over Current Protection: Yes
  • Beep Sound on Buttons/Alarm: Yes on/off
  • Working Enviroment Temperature: 0-40°C
  • Working Enviroment Humidity: 0-80%
  • Storage Enviroment Temperature: -10-60°C
  • Storage Enviroment Humidity: 20-70%

Battery Types:
  • Output Socket: XT60 (XT60 batteries can be connected directly - all other needs an charge lead)
  • NiMH/NiCd: 6-8 cells (7.2-9.6V)
  • Pb: 6/12V
  • LiHV/LiPo/LiIon/LiFe: 2-4 cells

Output Current:
  • NiMH/NiCd: 0.1-5A
  • LiHV/LiPo/LiIon/LiFe: 0.1-5A
  • Pb: 0.8-5A
  • Balance: Max 300mA
  • Trickle NiCd/NiMH: 50-300mA & off

Operation Modes - NiCd/NiMH:
  • Charge
  • Re-Peak: 1-3 times

Operation Modes - LiHV/LiPo/LiIon/LiFe:
  • Balance
  • Charge
  • Storage

Operation Modes - Pb:
  • Pb Normal Charge
  • Pb AGM Charge
  • Pb Cold Charge
