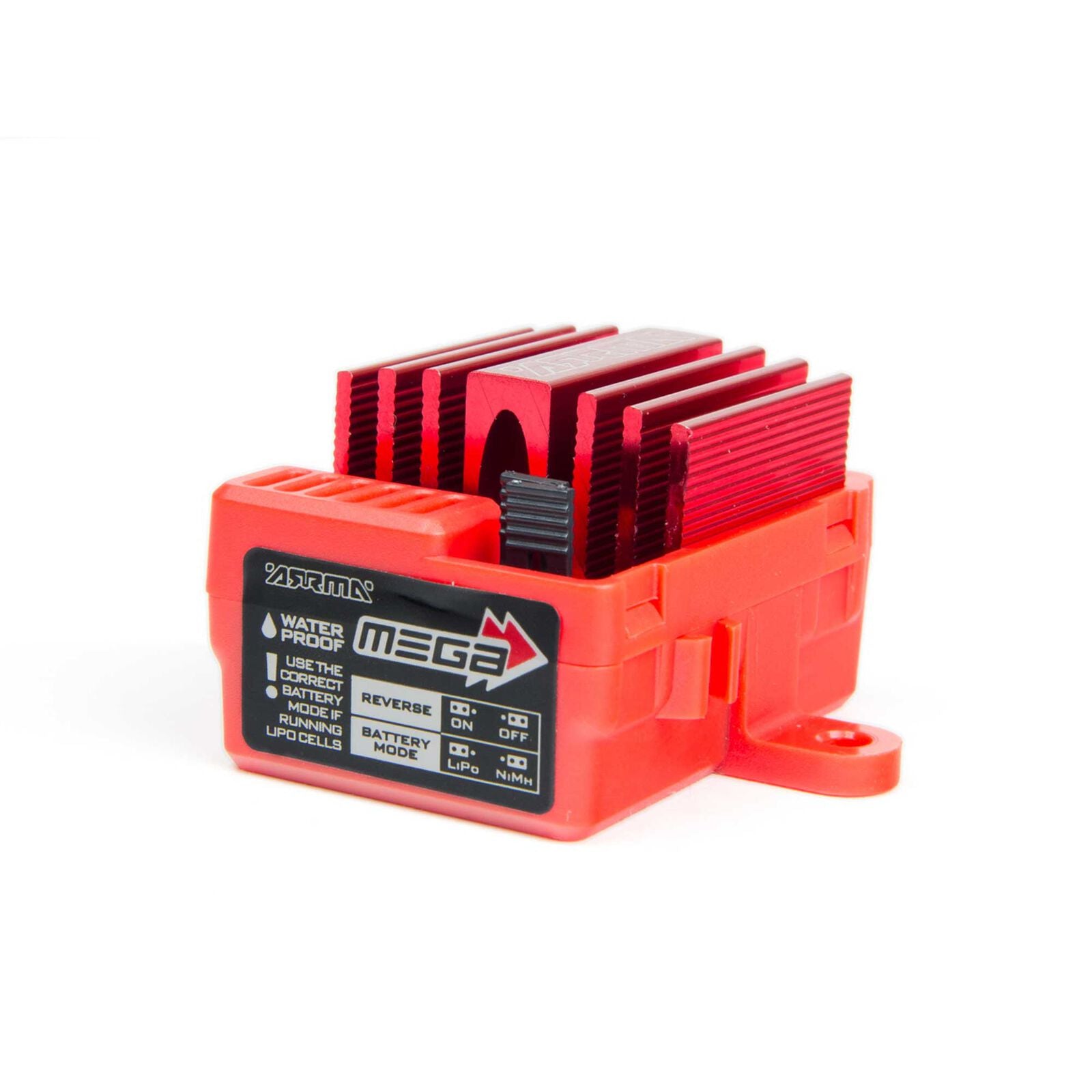

Arrma Mega Brushed 2S ESC


Product Details

This high-quality ARRMA MEGA ESC unit (with integrated LiPo protector) will provide consistent and safe power control in your ARRMA vehicle.


Fitted with reliable IC3 connector - Capable of running 2S LiPo or 6 or 7 cell NiMh, this MEGA ESC has over-voltage protection for safe voltage management when under heavy operating conditions - Cool-looking integrated red anodized heatsink for increased heat dissipation - Durable motor and battery connection cables for safe and reliable power transfer - Waterproof power switch - Strong and durable red nylon case with dedicated chassis mount tabs for additional secure fit  - Etched 'ARRMA' livery for cool looks and quality assurance

Battery usage 7.2v (6 Cell) NiMh Stick Pack, 8.4v (7 Cell) NiMh Stick Pack, 7.4V (2S) Lipo
Low Voltage Cut-Off (LVC) 3.2V per cell
Thermal Protection Temperature 95°C / 203°F
BEC Voltage 5V
BEC Current 2A
ESC Length 47mm / 1.85"
ESC Height 21mm / 0.83"
ESC Width 34mm / 1.34"
ESC Weight 70g / 2.47oz
Receiver Wire Length 160mm / 6.3"
Battery Wire Length 90mm / 3.54"


1 x ARRMA MEGA Brushed ESC
