DH12
The Dirt Hero off-road balance bike is a scaled down enduro machine, designed specifically for MTB kids who want to get off the driveway and onto the dirt.
12" | 14" | |
Age | 2-3 years | 2-5 years |
Minimum suggested inseam | 337mm / 13.3" | 367mm / 14.4" |
Minimum saddle height | 317mm / 12.5" | 346mm / 13.6" |
12" | 14" | |
---|---|---|
A. Seated reach | 301-340mm | 301-340mm |
B. Stack | 312mm | 312mm |
C. Effective TT length | 348mm | 348mm |
D. Seat tube length | 155mm | 155mm |
E. Seat tube angle | 65° | 65° |
F. Head tube length | 83mm | 83mm |
G. Head tube angle | 66° | 66° |
H. Chainstay length | 267mm | 281mm |
I. Wheel base | 612mm | 646mm |
J. Bike height | 105mm | 140mm |
K. Seat height | 317-402mm | 352-437mm |
L. Fork offset | 29mm | 41.5mm |
The Dirt Hero takes 12” and 14” wheel sizes, it's essentially 2 bikes in 1. Transitioning from 12” to 14”, instead of rushing to a 16” pedal bike, gives your little one more time to develop key skills and build a love for riding off-road - so when that next step comes, they'll be ready for it with skills like braking already under their belt.
Pneumatic mtb tires are essential for off-road riding. The air filled tires with deep tread significantly increase grip, giving your little one the confidence they need to tackle the trails. Air filled tyres also act as suspension, dampening bumps and roots along the way for a smoother ride.

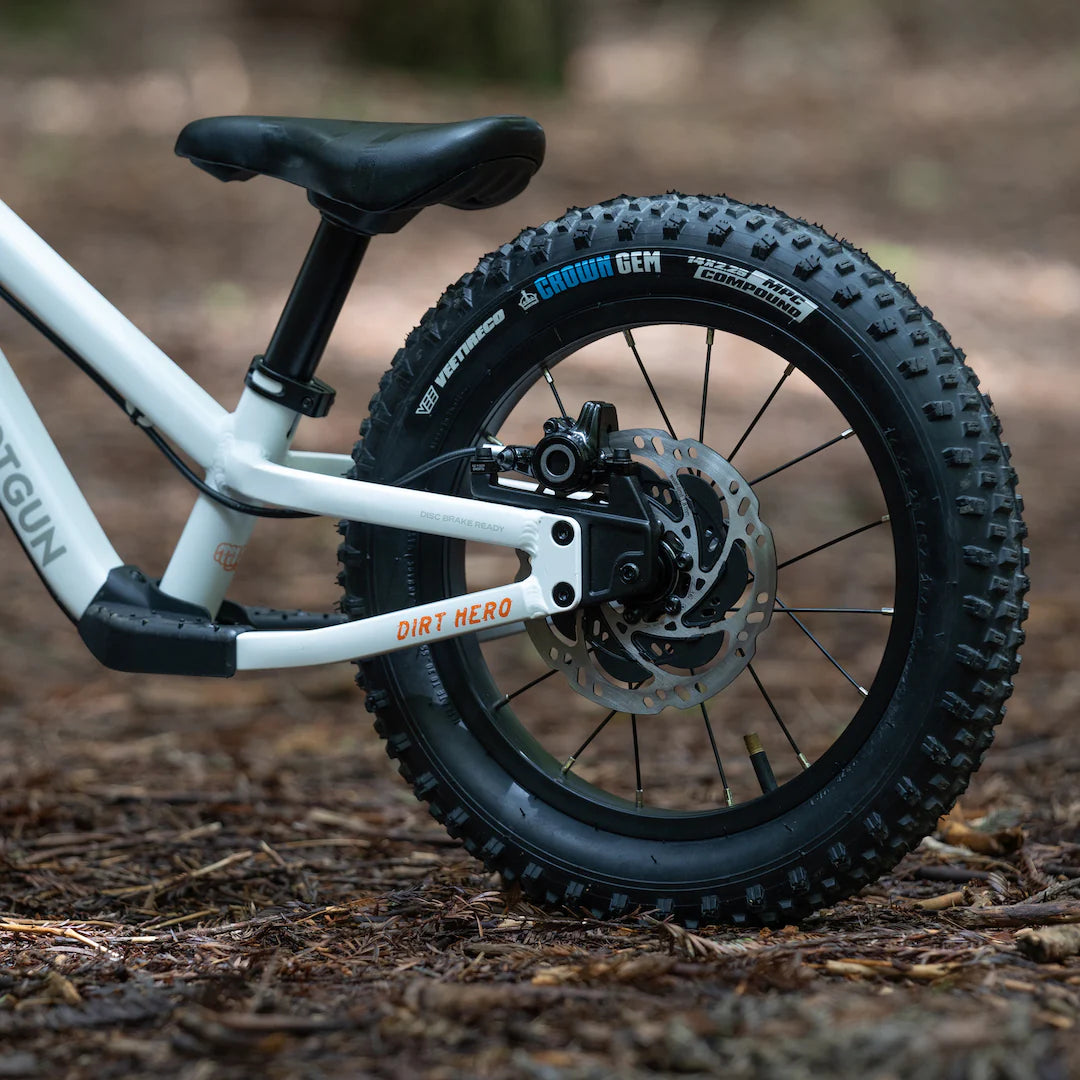

Learning to brake before pedaling is an important step in a kids mtb journey, and we believe that hydraulic disc brakes are the best option for balance bikes. Not only do they provide more power, but require far less hand strength to operate than V brakes, making them ideal for little hands. We’ve also created the world’s first child safe rotor guard, for parent's peace of mind.

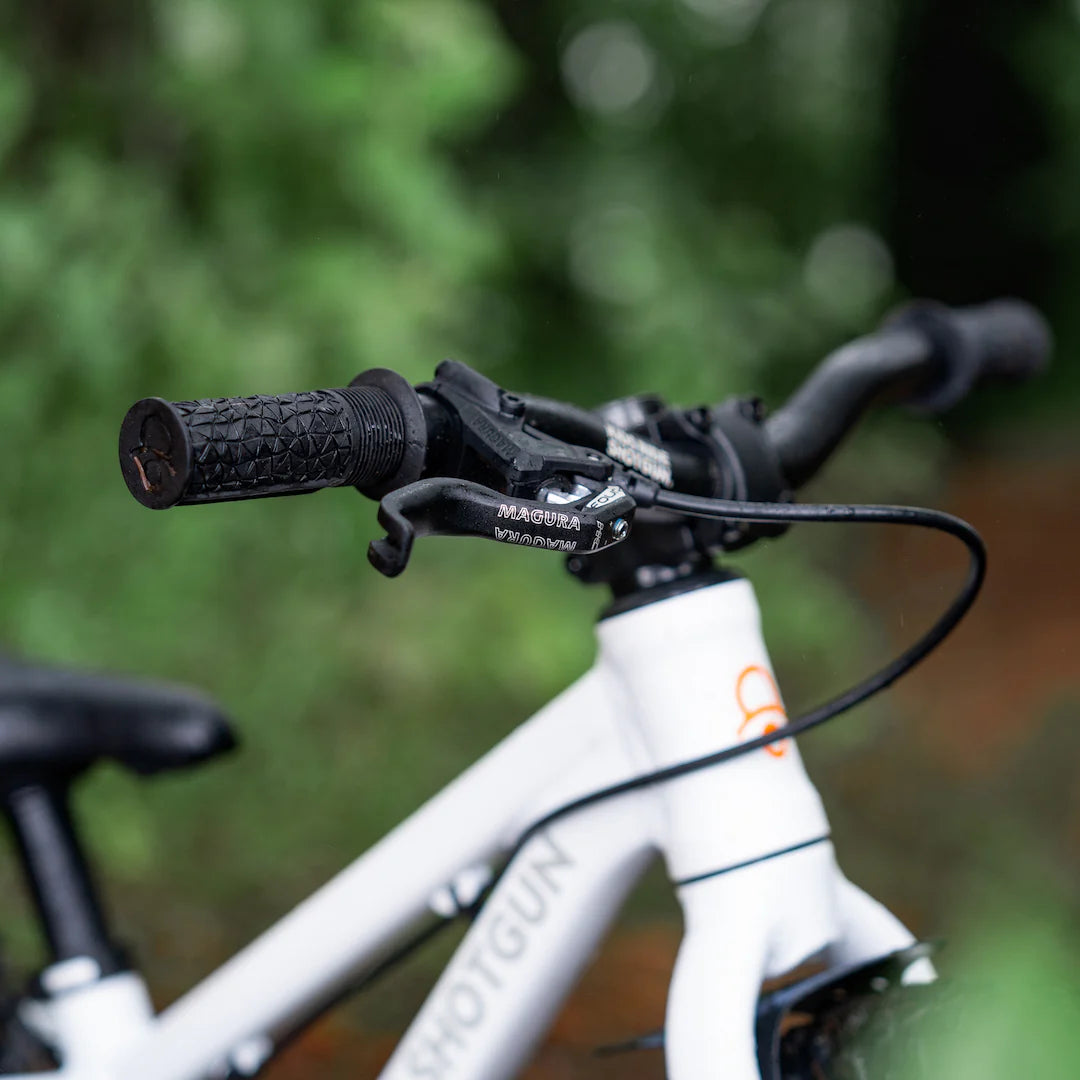

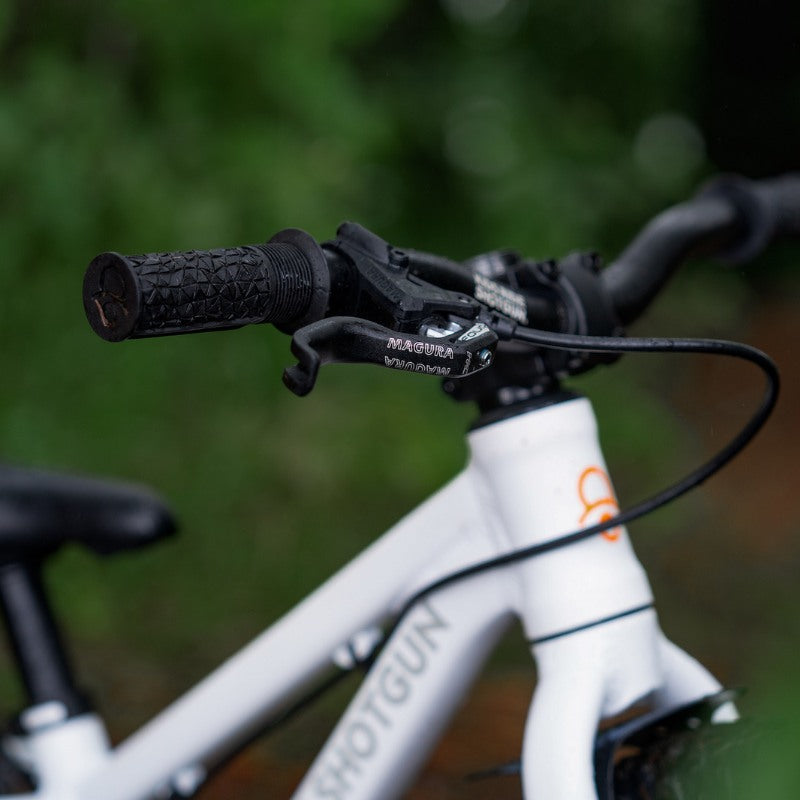

The Magura HC1 brake lever has some of the best reach adjustment on the market – meaning you can set the lever much closer to the handlebars than other brakes, a critical factor in usability for small hands with limited reach.
12" | 4kg |
12" with brake | 4.4kg |
14" | 4.2kg |
14" with brake | 4.6kg |
Spokes | 2mm stainless steel |
Lacing | 16x radial lacing |
Front hub | KRS custom through axle 100mm |
Rear hub | KRS custom through axle with disc brake mount 100mm |
Vee Tire Co Crown Gem 2.25” 12” / 14”
Handlebar | KRS custom. 25.4mm clamp, 19mm handles, Up sweep 6 degrees, backsweep 8 degrees, length 450mm, rise 20mm |
Grips |
KRS custom 19mm |
Stem | Forged 6061 T6 Aluminium, Rise: 0, Reach 30mm, Clamp: 25.4mm |
Bearings | NECO H125 |
Headset | Semi integrated headset (sealed cartridge bearings) |
Frame material |
6061-T6 aluminium |
Head tube |
Standard 1 1/8" semi integrated headset compatable |
Seat post |
Aluminuim 6061- T6, 27.2mm |
Fork |
6061-T6 aluminium |
Bearings | NECO H125 |
Colour | Arctic storm white, matte |

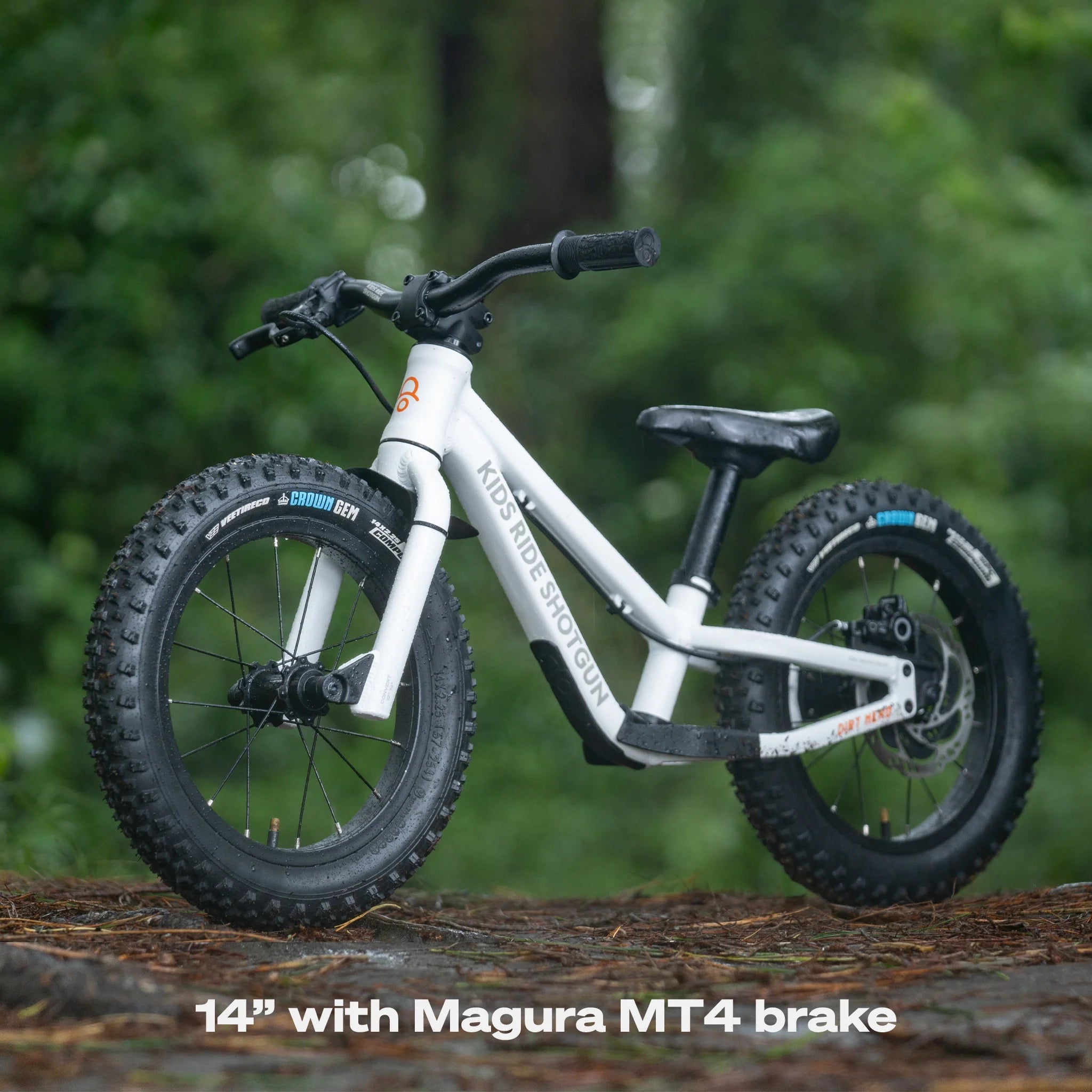

Brake model |
Magura MT4 post mount |
Master cylinder material |
Carbotecture |
Blade Lever |
Magura HC1, aluminium |
Caliper | Magura MT4 - Aluminium (OE version) |
Rotor | Storm HC 140 |
Hose length | 750mm |
Fluid type | Mineral oil |
Pad | Organic |
