Pilots and drivers enjoy more Smart benefits with Spektrum™ Smart G2 50C LiPos. Not only are charging parameters and performance data stored and uploaded automatically to Smart chargers, but no balance lead is needed — just one easy IC® connection!
Lithium Polymer Battery Safety Guidelines pdf.
Drivers and pilots enjoy even more Smart advantages when using Spektrum™ Smart G2 50C LiPo batteries to power their vehicles. New "Generation 2" features make these LiPo packs — featuring a 50C continuous discharge rating for high performance and longevity — even simpler and safer to use together with your Smart charger.
For example, Spektrum™ Smart G2 technology makes it much easier to balance charge your LiPo batteries. Balancing information travels through the unique data wire of each Smart G2 battery's innovative IC3® or IC5® connector. As a result, only a single connection is needed — no separate balance lead is required.
Smart G2 batteries come from the factory programmed to discharge automatically to a safe storage voltage of 3.90V after 72 hours of inactivity. The benefits include longer battery life, better performance over the life of the pack, and the peace of mind that comes from knowing your Smart battery is maintenance-free. You can change the battery's Auto Storage settings based on your own preferences. G2 batteries also offer a storage discharge rate that's three times faster than the previous G1 Smart batteries.
Smart G2 30C soft-case LiPo packs also include thicker internal metal side plates. These plates improve heat dissipation and provide more protection for the cells against punctures during rough landings or in similar impact-prone situations.
As with other Smart batteries, you'll never have to set your own charging preferences for a Spektrum™ Smart G2 battery until you want to. When a Smart G2 LiPo battery is connected to a Spektrum™ Smart charger, its unique charging parameters and health information upload to the charger from the battery's integrated memory microchip. Through the charger you can view and set preferences such as charge rates, so all that's required to charge the pack is connecting it to your Smart charger. Smart technology takes care of the rest.
Spektrum™ Smart G2 50C LiPo batteries store a wide variety of essential information, including:
Spektrum™ Smart G2 LiPo 50C batteries also maintain an error log including the number of over-heat, over-discharge and over-charge incidents. This data can be helpful in assuring that the battery you've chosen is right for the application. Innovative Spektrum™ Smart G2 LiPo 50C batteries are so easy to use, they nearly take care of themselves. It's easy to achieve peak battery performance, reliability and longevity with Smart G2 technology!
Note: G2 batteries require the use of a Spektrum™ G2 Smart Charger or earlier Smart Charger with G2 update.
When connected to a Spektrum™ Smart charger, a Smart G2 battery's unique parameters, health, and balancing information upload automatically from its memory microchip through the IC3® or IC5® connector's data wire. To charge and balance the pack, you simply connect it to your Smart charger. Safe charging begins automatically, and no separate balance lead is needed.
An integrated microchip allows each Smart G2 battery to save vital information such as battery brand, chemistry, cell count, capacity, number of charging cycles, number of discharges, C rating, battery temperature, and internal resistance. Additionally, each battery will save a log of unhealthy events such as over-charge, over-discharge, and over-temperature. This allows you to make the most informed decision about each battery when you are getting your gear ready to go out and have fun.
Spektrum™ Smart G2 batteries practically take care of themselves. G2 batteries come from the factory programmed to automatically discharge to a safe storage voltage of 3.90V after 72 hours of inactivity. The results are longer battery life, better performance over the life of the pack and peace of mind that your Smart battery comes maintenance-free. The battery's Auto Storage settings can be changed by the user based on preferences.
Preset charge, discharge, and storage parameters are automatically relayed from your Spektrum™ Smart G2 battery to your Smart charger, making charging as simple as plugging in the pack. Charge rate of individual batteries can also be user-customized, allowing you to take full advantage of packs with faster charge ratings. The battery's integrated microchip remembers the last charging rate you set, so the next time you plug it in, these settings will automatically take effect.
The innovative Smart connection is made possible by a microchip installed in every battery, which feeds the battery's unique information through a data cable to its IC connector. Spektrum™ Smart IC3® and IC5® connectors have been designed from the ground up to provide a more solid connection, higher heat resistance, and effortless installation. IC connectors are also backwards compatible with EC connectors so you can use Smart batteries with older systems. Smart G2 batteries can be charged only with Smart chargers.
***Krakkasport vill ýtreka að Li-Po rafhlöður eru vandmeðfarnar. Því er mælst með að kaupendur kynni sér rétta meðhöndlun fyrir notkun.
***Krakkasport ber ekki ábyrgð á skemmdum sem kunna að hljótast á rafhlöðum vegna rangrar meðferðar.
|Battery Balance Connector||G2 Smart|
|Battery Type||LiPo (3.7V per cell)|
|Charge Protection Circuitry||Yes|
|Maximum Burst Discharge Rate||50C|
|Maximum Charge Rate||5C|
|Normal/Standard Charge Current||5A|
|Normal/Standard Charge Rate||1C|
|Number of Cells||2|

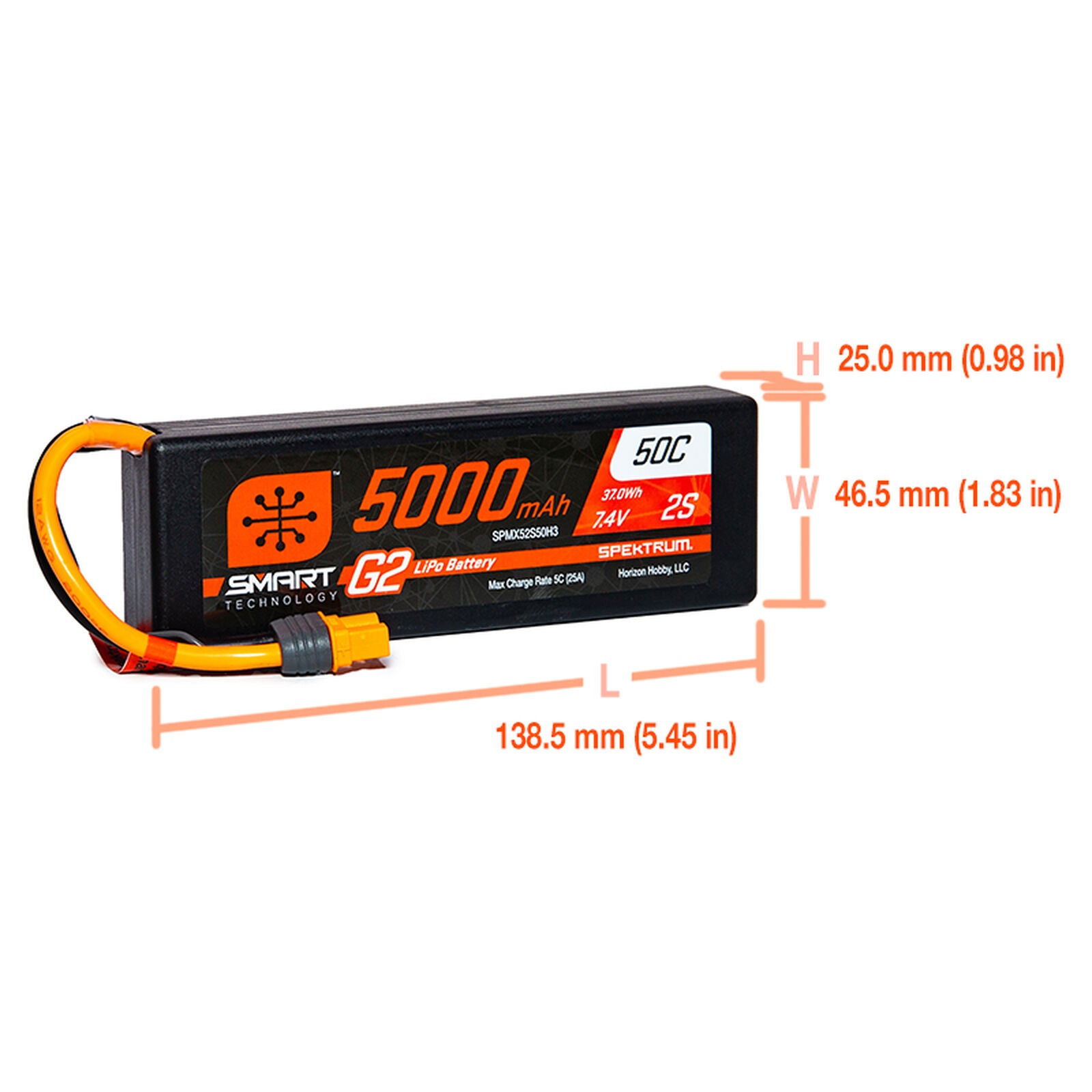

|Product Height||0.98" (25 mm)|
|Product Length||5.45" (138 mm)|
|Product Weight||10.58oz (300g)|
|Product Width||1.8" (46 mm)|
|Wire Gauge||12 AWG|
