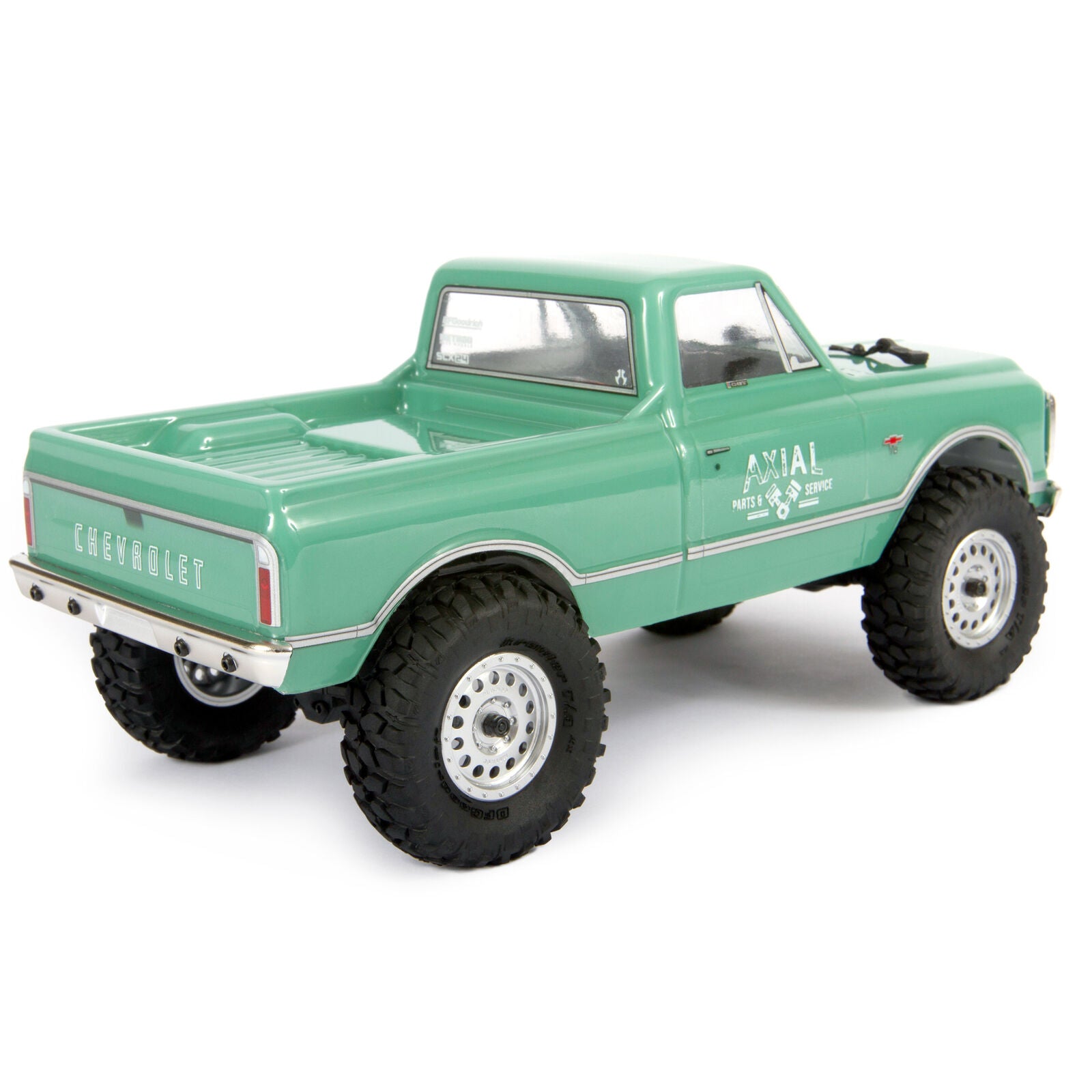

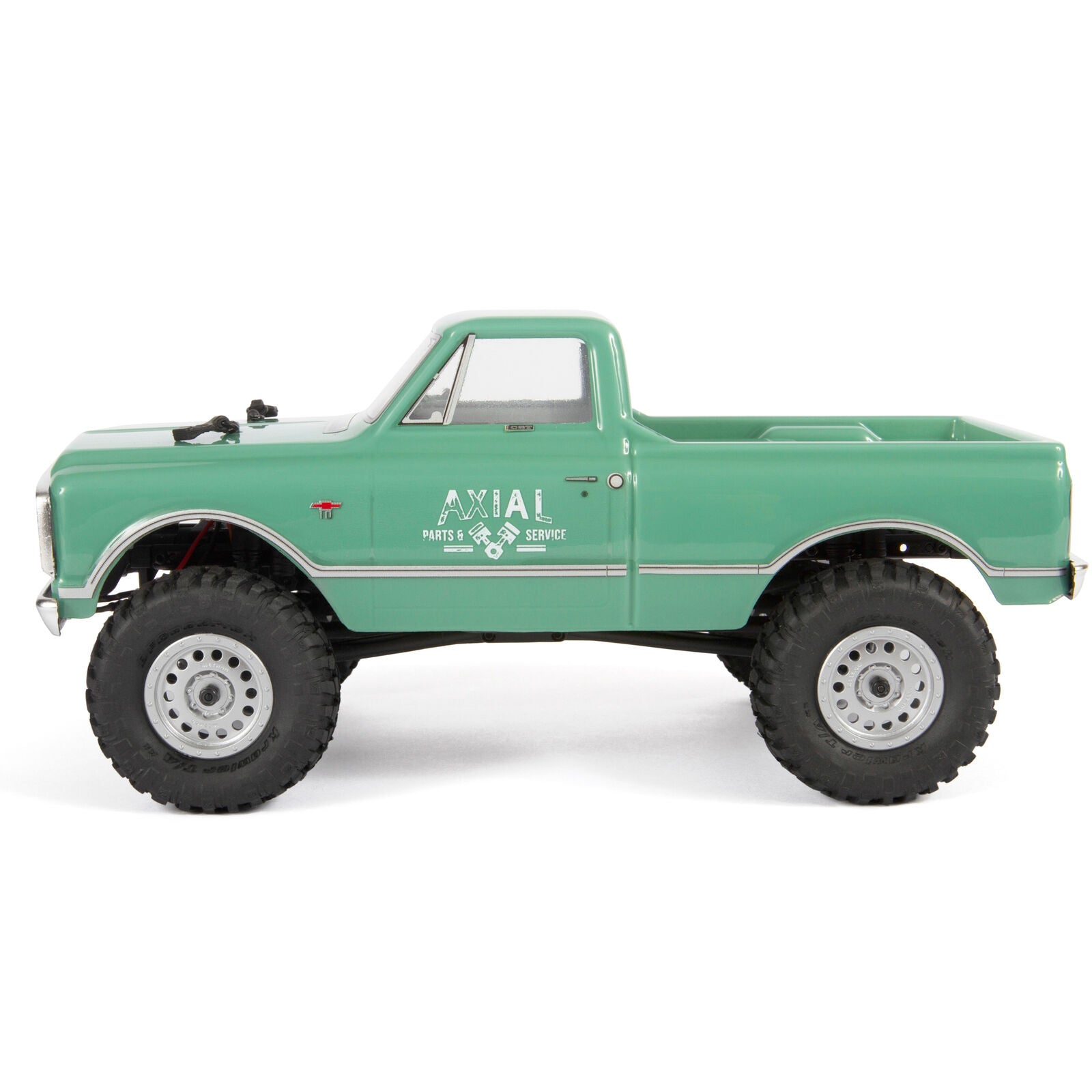

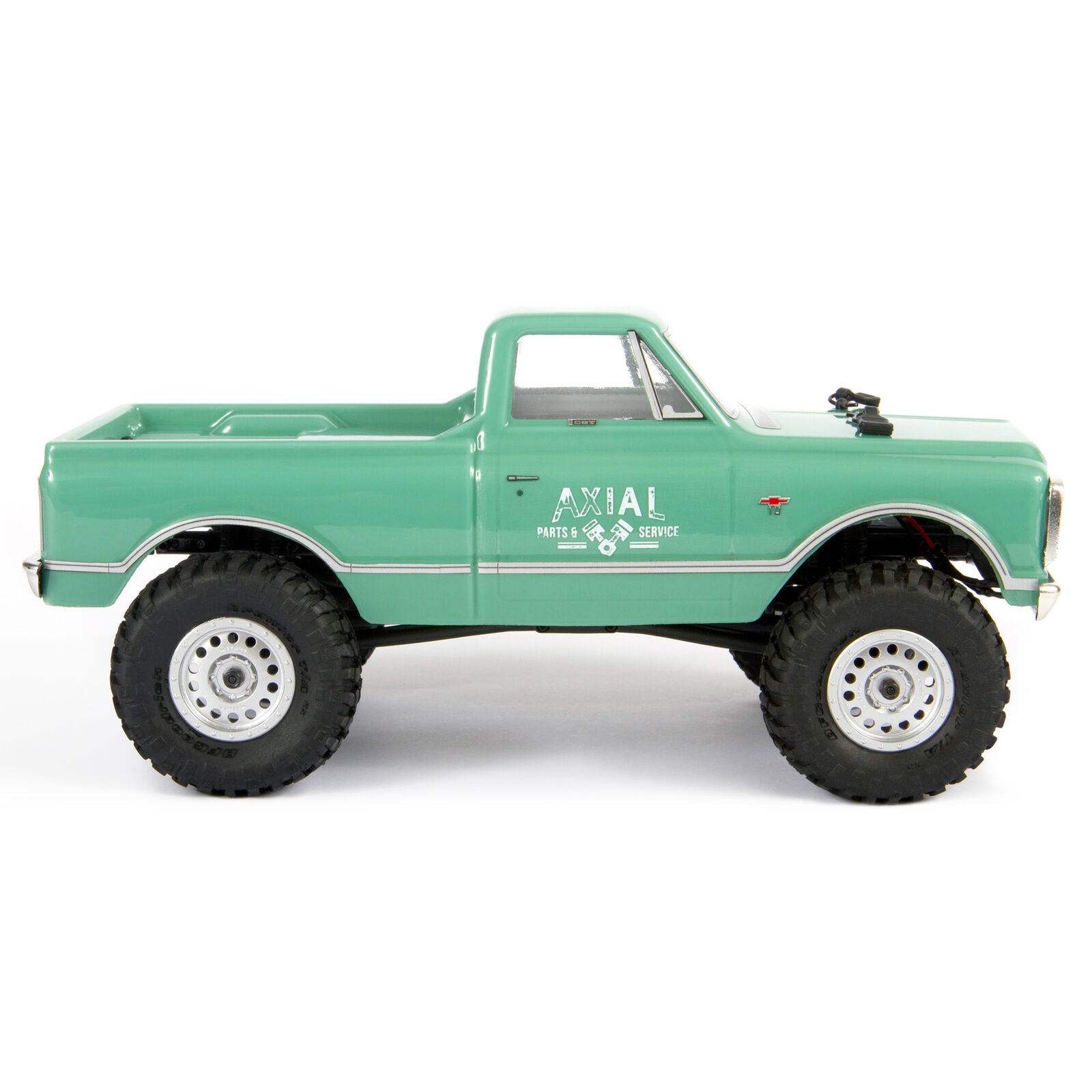

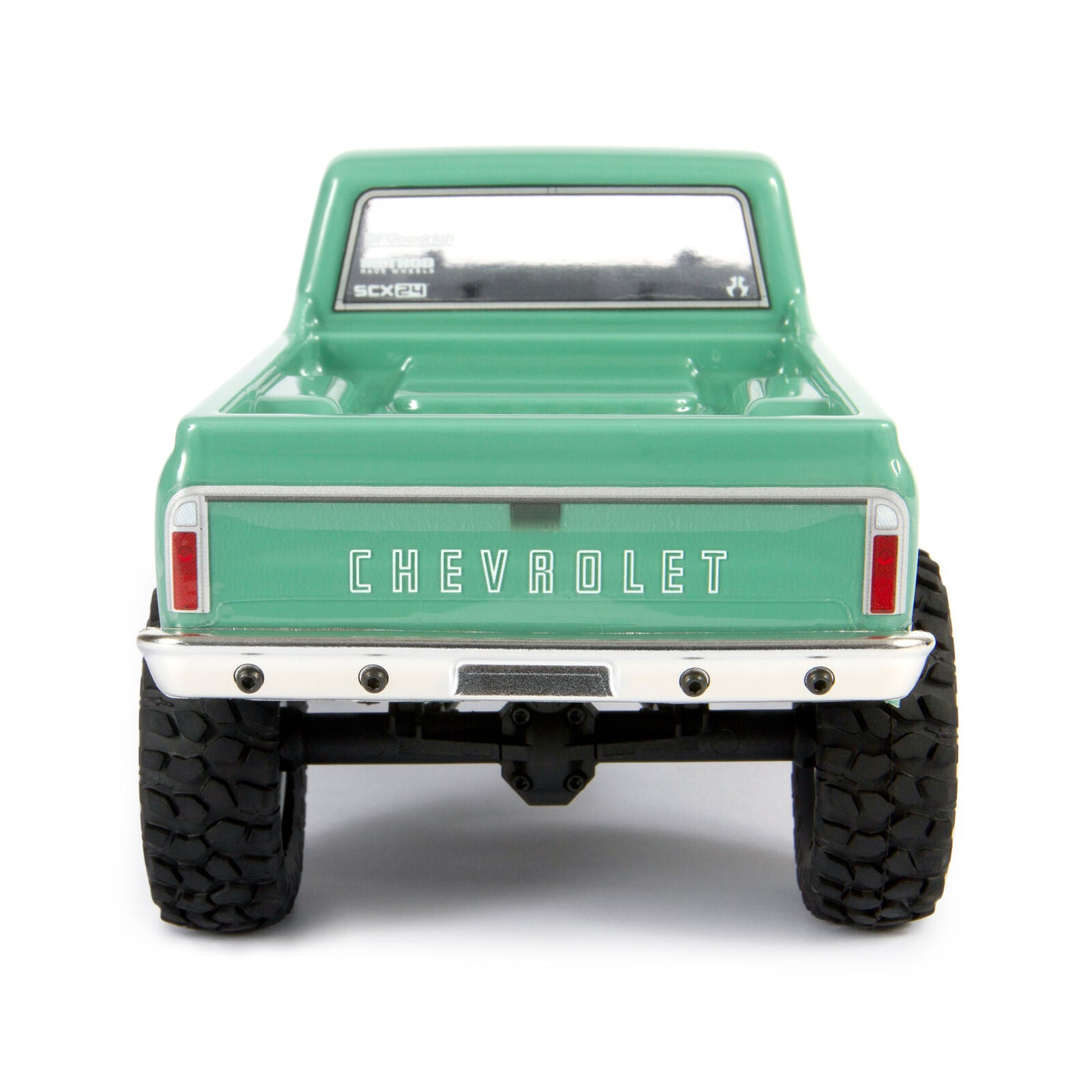

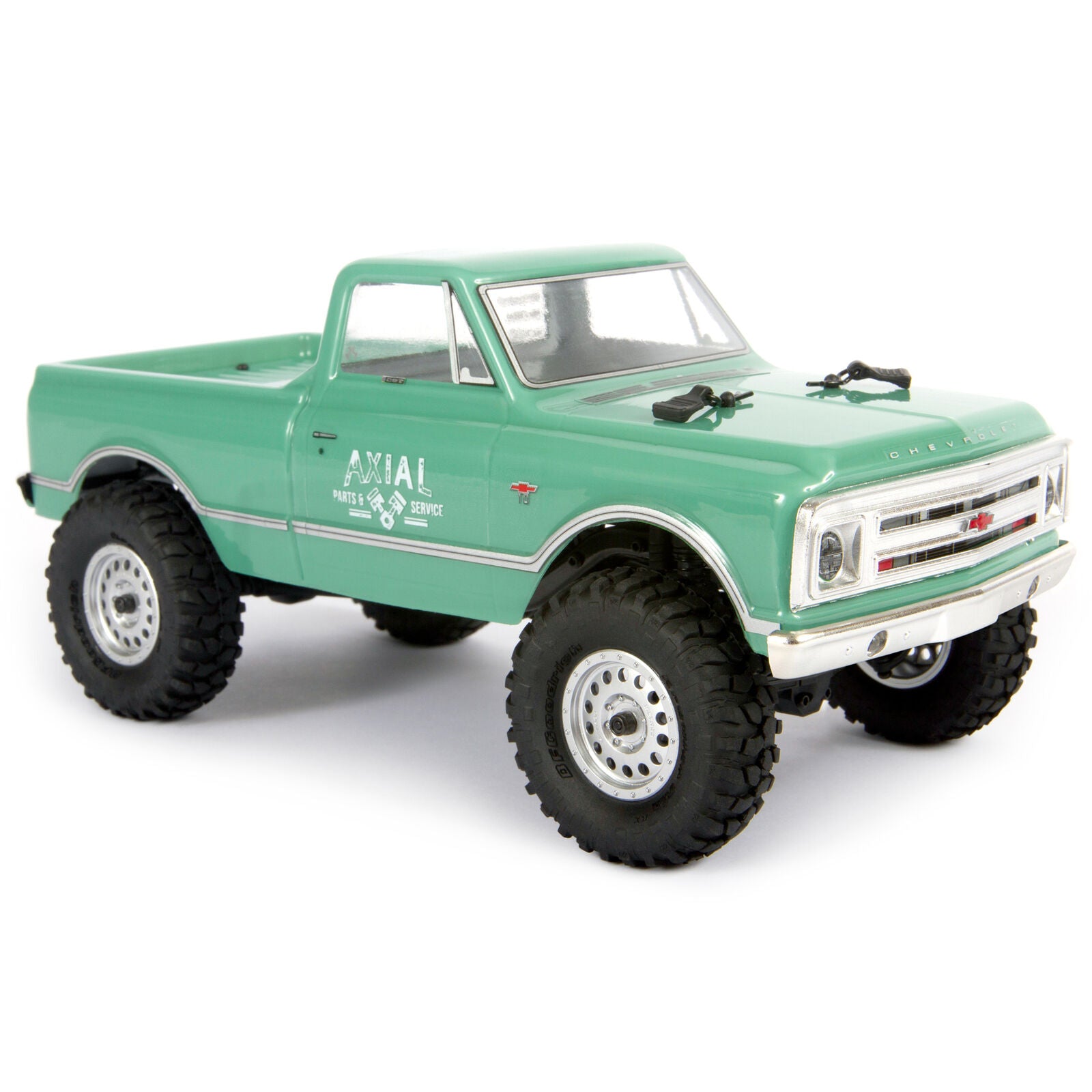

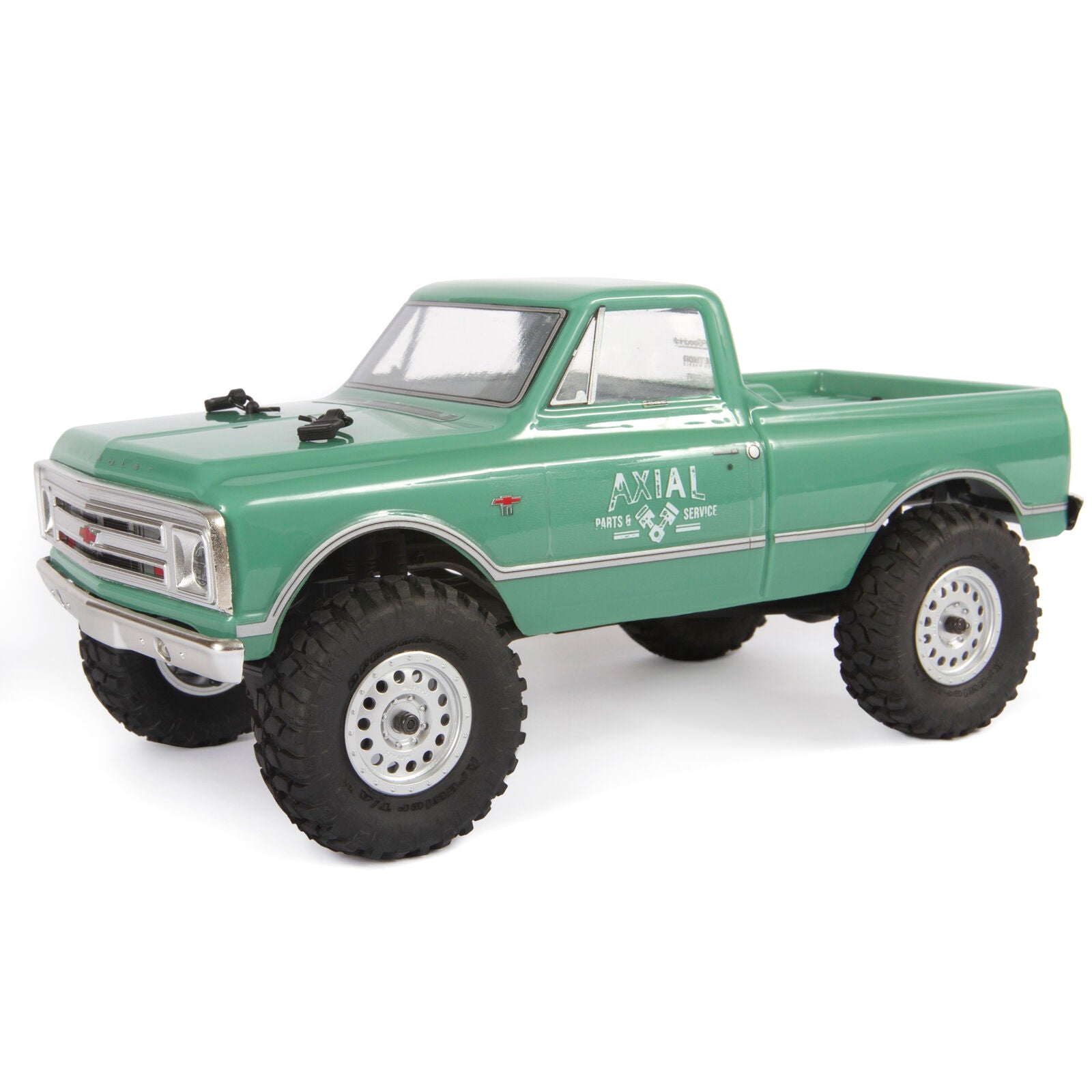

AXIAL 1/24 SCX24 1967 Chevrolet C10 4WD Truck Brushed RTR


1/24 SCX24 1967 Chevrolet C10 4WD Truck Brushed - RTR Grænn

Key Features

  • Realistic 1967 Chevrolet C10 Truck body
  • True, full-time 4-wheel drive
  • 3-Link front and 4-link rear suspension for optimal handling
  • Full ball bearing drivetrain
  • Realistic steel frame rails for added strength

In The Box

  • (1) Axial® SCX24™ 1967 Chevrolet C10 Truck 1/24 Scale RTR
  • (1) Axial® AX-4 2.4GHz Radio System
  • (1) Axial® AS-1 Servo
  • (1) Axial® AE-6 ESC/Receiver Combo
  • (1) USB Charger (DYNC1062)
  • (1) Dynamite® 88T 030 Brushed Electric Motor
  • (1) Dynamite® 350mAh 2S LiPo 7.4V Battery Pack (DYNB0012)
  • (4) “AA” Batteries for the Transmitter
  • (1) Product Manual

Needed to Complete

  • Nothing! Everything required is included in the box.


  • Axial® AS-1 servo with servo saver
  • Dynamite® 7.4V 350mAh 30C LiPo battery
  • Dynamite® 180-size, 88T Brushed Electric Motor

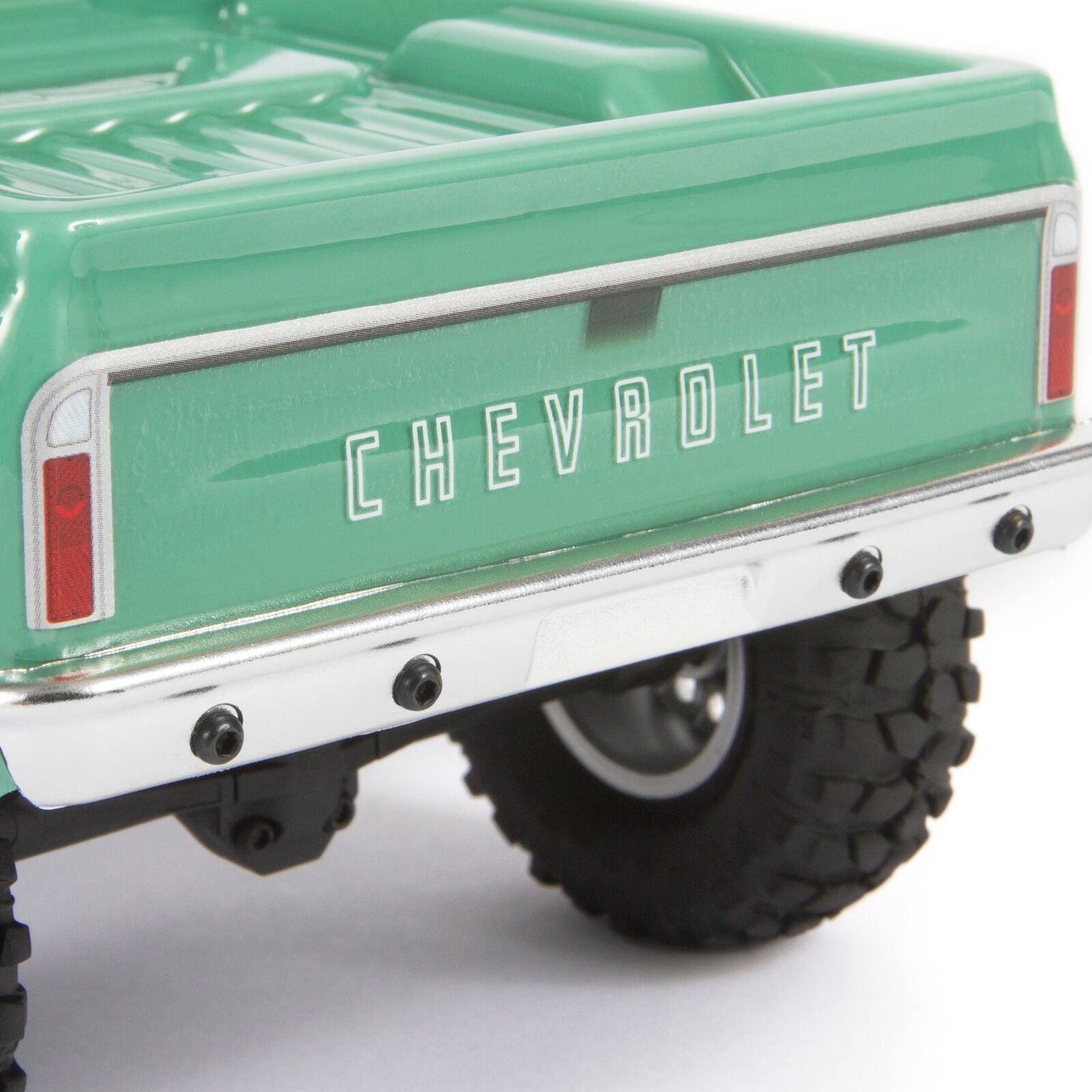

  • Realistic 1967 Chevrolet C10 Truck body

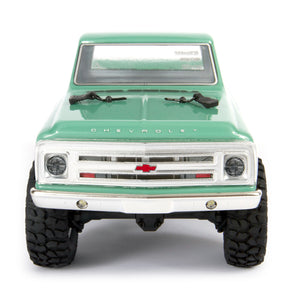

  • Two bright LEDs in front bumper for night driving
  • True, full-time 4-wheel drive
  • 3-Link front and 4-link rear suspension for optimal handling
  • Worm drive gears for front and rear axles that add ground clearance
  • Realistic steel frame rails for added strength

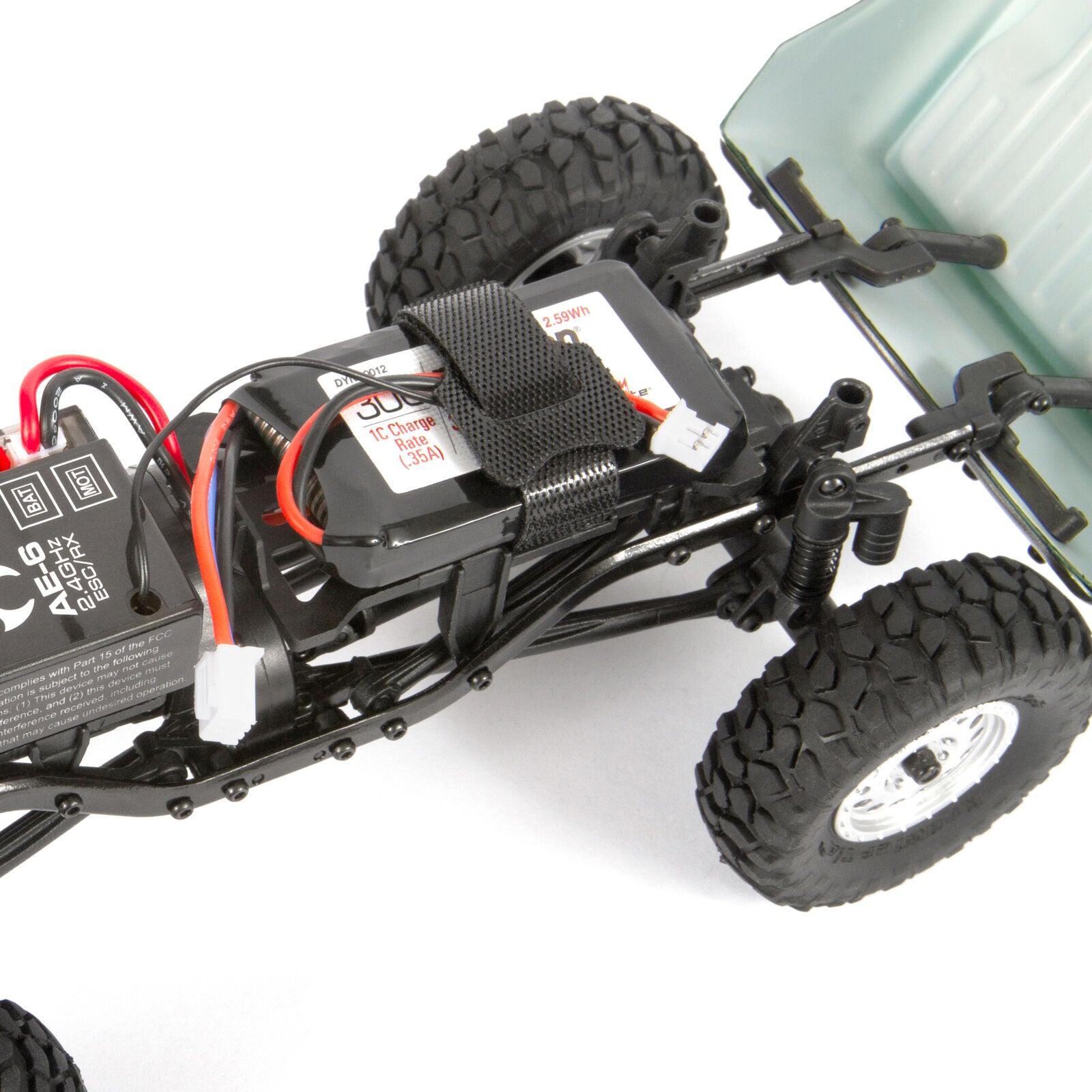

  • Hinged body system for easy access to on-board components
  • Full ball bearing drivetrain

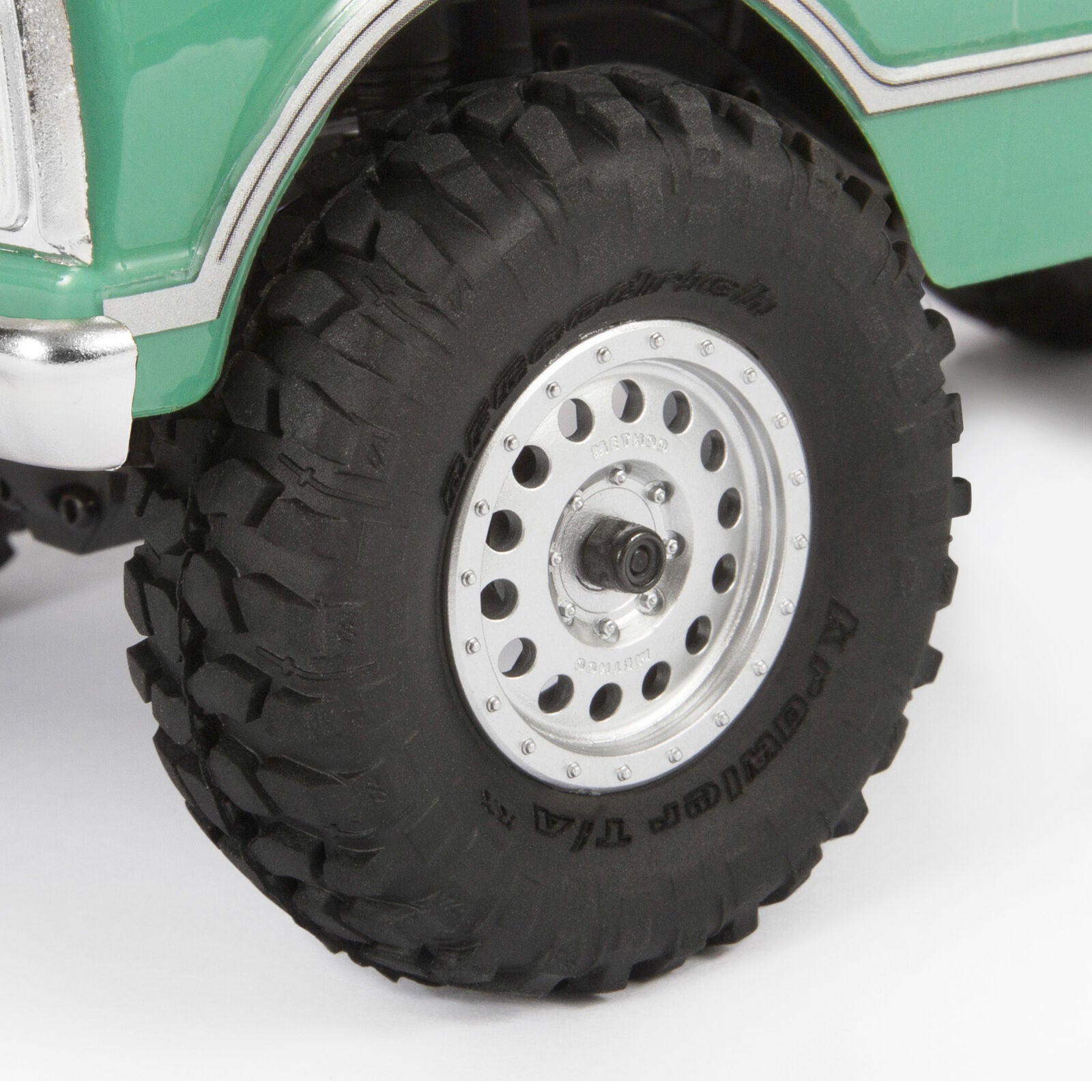

  • Licensed wheels modeled after 1:1 Method Wheels
  • Licensed tires modeled after 1:1 BF Goodrich Tires

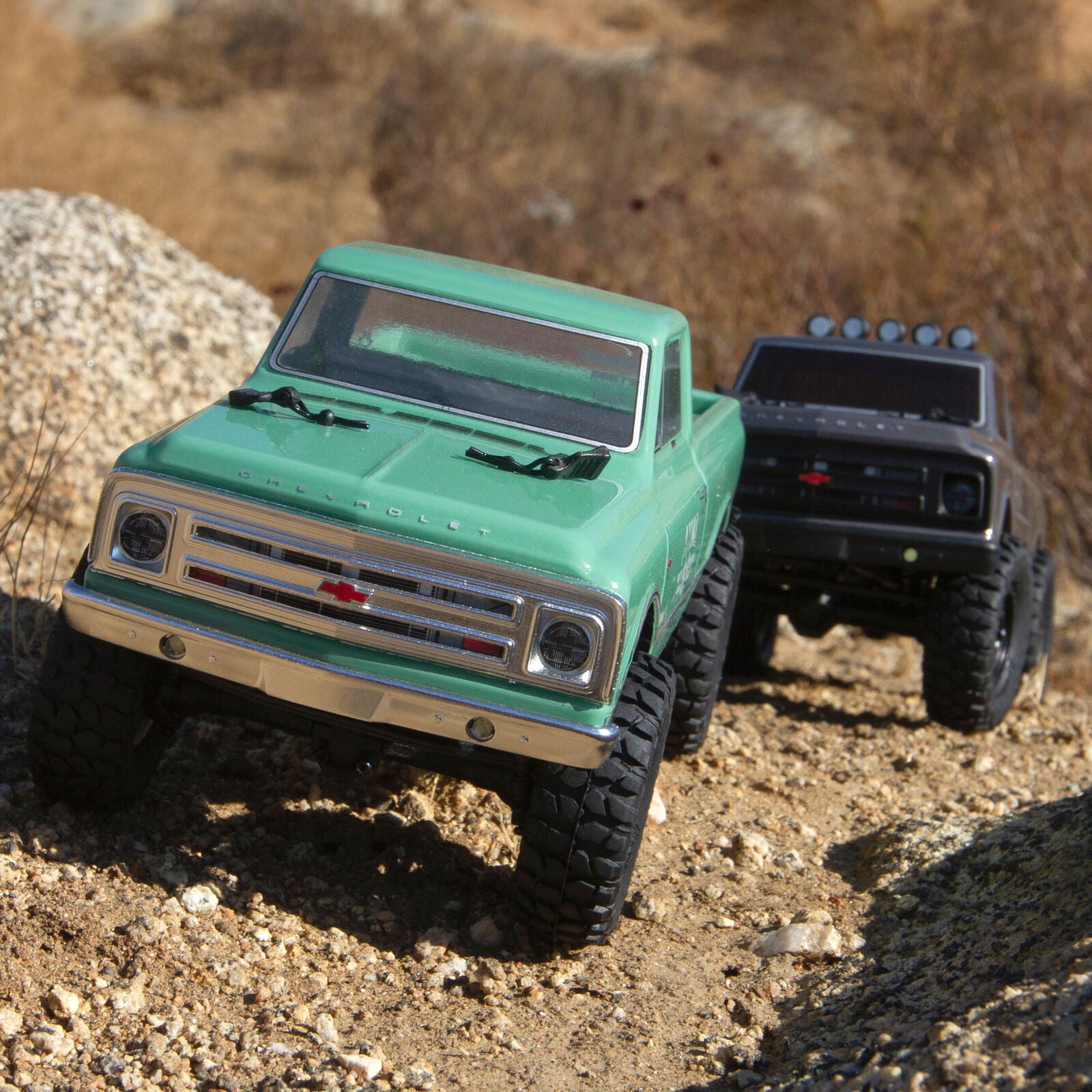

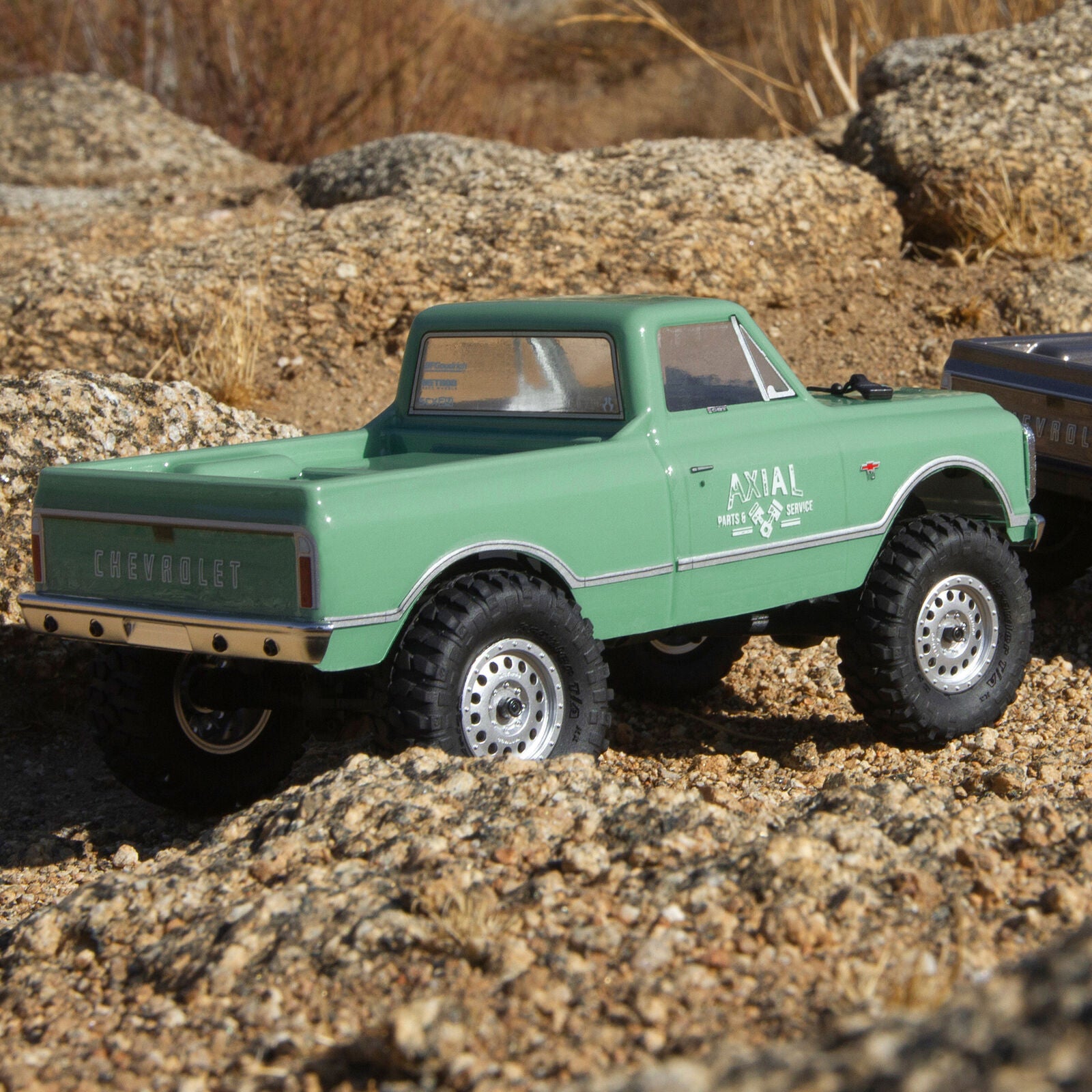

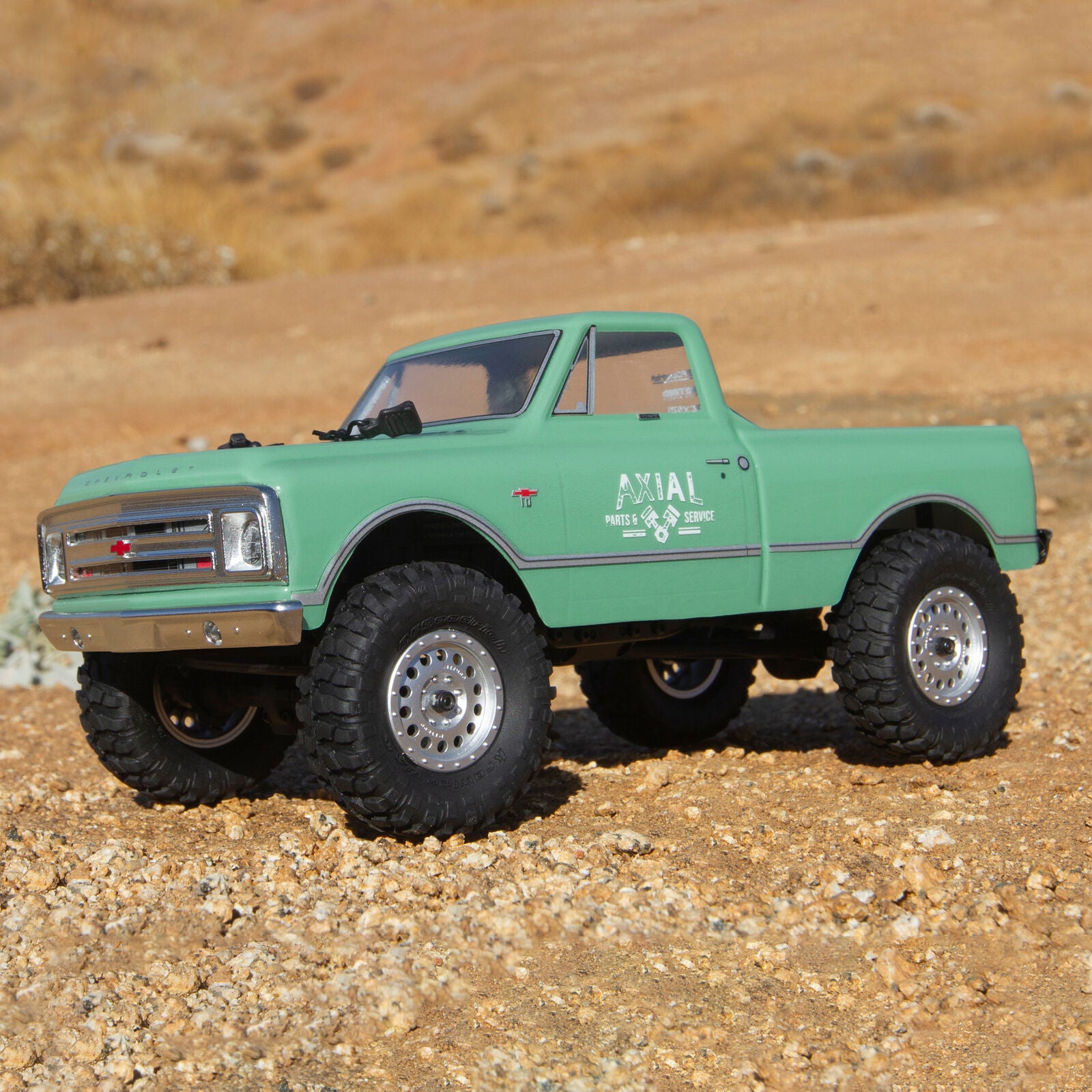

The detailed, ready-to-run 1967 Chevrolet C10 Truck is the latest model in the popular SCX24™ series from Axial® Racing. Its compact, versatile 1/24 scale size opens up almost any environment to spur-of-the-moment RC crawling expeditions. When it’s time for a break at work, set up an obstacle course with items on your desk for the SCX24™ Chevrolet C10 Truck to negotiate. Any room at home can also become the setting for exciting feats and contests. If you’d rather run outdoors, go for it! Collect some twigs and marble-size rocks, dig a few holes, and soon you’ll have a challenging trail for fresh air adventuring. Your truck’s water-resistant electronics save you from having to worry about wet track conditions when you crawl.

With its realistic steel chassis frame rails, steel front and rear axles, and steel dogbones, this model has the strength to deliver Axial®-caliber crawling performance even in 1/24 scale. It’s designed to keep right on running through rough trails and tough climbs. The SCX24™ 1967 Chevrolet C10 comes ready-to-run with all of the electronics, transmitter, receiver, servos, motor, ESC, batteries and charger included.

Handbók pdf.


Product Specifications

Manufacturer # AXID22GG
Approximate Assembly Time None
Ball Bearings Full set
Battery Included
Body Trimmed and painted Axial 1967 Chevrolet C10 pickup
Brakes Integrated with ESC
Charger Included

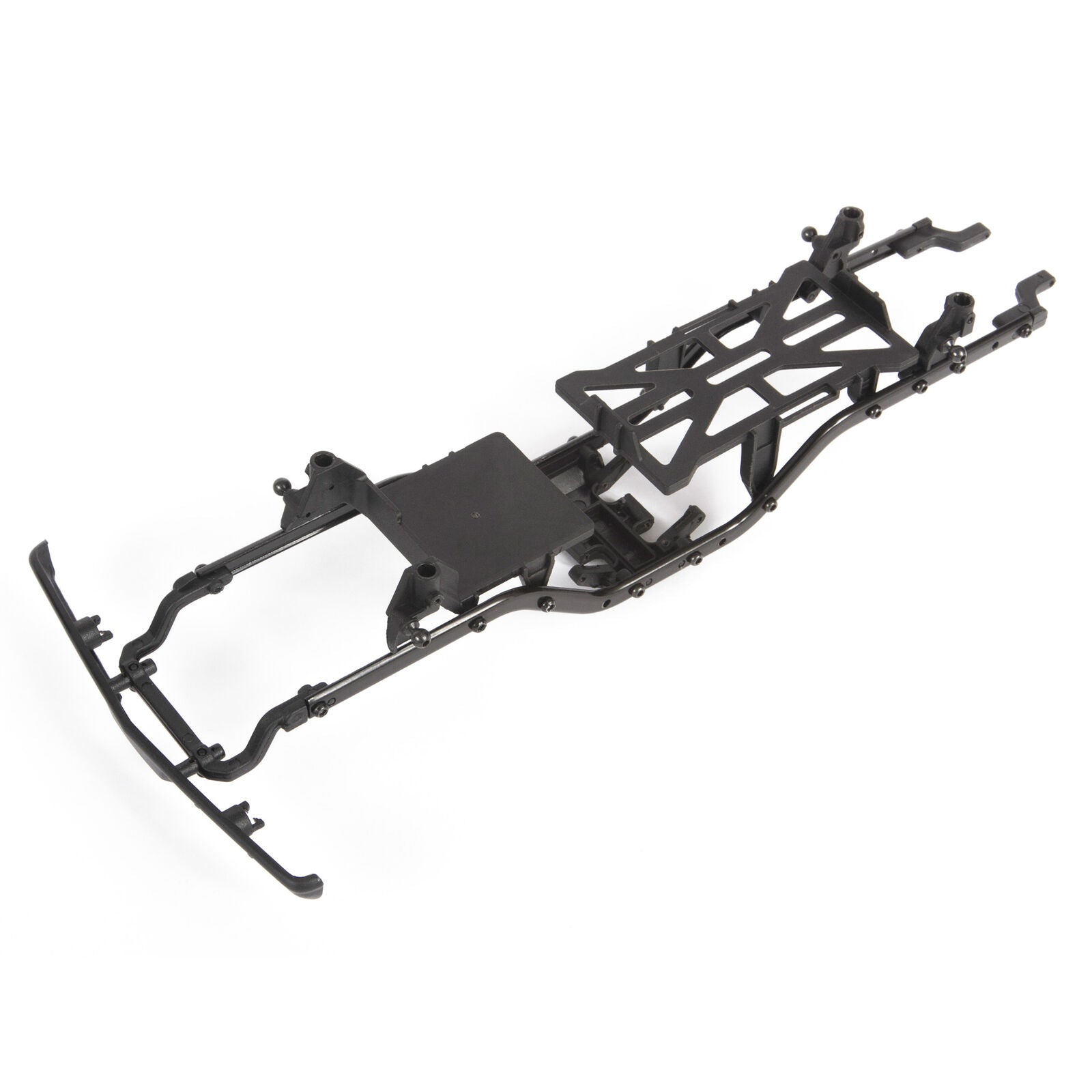

Chassis Stamped steel rails
Completion Level Ready-To-Run
Differential Worm gear 16T/4T
Drivetrain 4WD
Drive Type Forward/Brake/Reverse
Front Track 3.9 in (99.5mm)
Power Type Electric
Ground Clearance 1.06" (27mm)
Motor Size 180
Motor Type Brushed
Outer Diameter 1.88" (48 mm)
Pinion 10T
Product Height 3.6" (91 mm)
Product Length 8.6" (218 mm)
Product Weight 8.0 oz (0.22kg)
Product Width 3.9" (99 mm)
Radio Included
Rear Track 3.9 in (99.5mm)
Receiver Included
Scale 1/24
Servos Included
Shock Type Plastic body, coil over, friction .9-1.3" (24-33.4mm)
Speed Control Included
Spur Gear 55T
Tire Tread Trail Grappler
Vehicle Type Rock Crawler
Water-Resistant Yes
Wheelbase 5.2" (132 mm)
Wheel Width .48" (12.4mm)
